Quantity Total
(2) Westinghouse D.C. Motors
(1) 900 HP, 300 RPM, Frame BB 830.5, Ball Bearing 500 Volt,
1454 Amp. Rise Cont 60°C, Inst. BK 3500/508 SN 1512BA-01,
F-2 Terminal Arrangement, Shunt Wound, Field Amps 22, Field
Ohms @ 75°F = 8.47 Single Shaft, Enclosre DPFG-BV
(1) 900 HP, 300
RPM, Frame BB 8330.5, Ball Bearing, 500 Volt, 1454 Amp, Rise
Cont. 60°C, Inst. BK 3500/508 S/N 1512AA-01, F-1 Terminal
Arrangement, Shunt Wound, Field Amps 22, Field Ohms @ 75°F
= 8.47
(1) 2500
HP, 720 RPM General Electric Synchronous Motor, 4000 Volt,
3PH, 60 Hz, Code E, Amp277, Fr. 8509Z, Type TS, Excitation
Volts 100, Amp 1.8, Drip Proof, Sleeve Bearing, HP 2875, Cont.
90°C-Rise by stator rtd, 90°C - Rise by resistance,
HP 2875, Amp 318, Exc. Amp 2.8, Inst. GEH3181, GEI170540,
Conn. Dia 34A 150697-001, Model 5TS85097401, S/N KF8371894,
Shaft Dimensions - 6 -7/8" Dia X Approx. 14" L.
Rotation Clockwise as viewed from shaft end. F-2 Terminal
Arrangement, with 3-GE, JKS-3, 400-5 Ratio Ct's F-1 Space
Heaters 1,600 W, 220Volt.
Quantity
(2) Model #5CD614HA803C801, Type CD-6160, 300 HP, 500/1300
RPM, Arm Volts 500, Arm. Amps 480,
Enclosure SPFG-SV Wound Shunt, Max Ambient 40† C, Ins. Class
F, DE-Bearing, #894A605-025, CE-Bearing #894A605-023, Inst.
-GEH 5359, Conn. Diagram #36B472050BB, Brush (12) #36A164453AA005
SV 3000,
CFM at 3.0 inches of water/OVSP Trip at 1,495 RPM/Mtr-2,282
2.0 PU Occasional Peak.
B-Rise 1.15SF Motor Weight 7,800 lbs.
Nominal
Field Volts 300 / Nominal Field Volts 150
Fld Amps 15.5/4.8 / Fld Amps 31.0/9.60
Fld Ohms -25†C -13.5 / Fld Ohms - 25†C - 3.3
F-2
w/ Terminal Boxes
S/N YP-4-23
S/N YP-4-17
Lake Shore Tach
Type RIM Tach
8,500 Series
S/N RE 188653, RE 18691
5-15 VDC
Siemen's

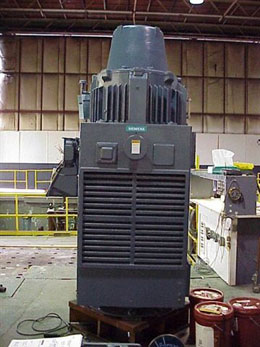

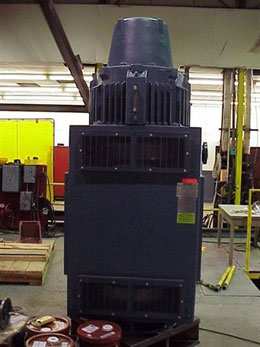

Induction Motor VSS, 1750 HP, 1788 RPM, Type CG11V, Frame
5812, 2300/4000V, 3 Phase, 60Hz,
S/N - D03001-01-1, 388/221 Amp, Max Amb 40 †, 1.0 SF, Mfg.
Date 11-03, Class "F" Ins., KVA Code F, Cont. Duty,
Built
in Norwood, Ohio
Space Heater 120/240 Volt, 575 Watt
Shaft End Bearing # 110BC02JP3
Opp. End Bearing # 150TS94M
DRAGLINE
MOTORS: All General Electric co. Quantity, Type and Photos.
Running takouts
MDP
824AER (Stock - Quantity - 2 )
1300 HP, 700 RPM, 475 Volts, 2200 Amps, 75†C-rise Continuous
Duty, Type MDP-824AER, 72 Volts Shunt, Max Safe
Speed 1360 RPM, Enclosure Protected Blower Vent, Comm. End
Brg #AFBMA-180RJ02X3, OPP Comm. End Brg # AFBMA-
160RJ02X3, Model 5MD-824A3, Inst. Book #GEH 3258C
MDV-824-AER
(Stock- Quantity - 5 )
1300 HP, 700 RPM, 475 volt, 2200 Amps, 75† C-Rise, Continuous
Duty, Type MDV-824-AER,
72 Volt Shunt, Max Safe Speed
1360 RPM, Enclosure Protected Blower Vent, Comm End Brg #AFBMA-180BT02K,
OPP End Brg #AFBMA-180RJ02X3, S.P.
Hrt. 480V, 2000W, Model 5MD824A4, S/N KM-2-147
|
