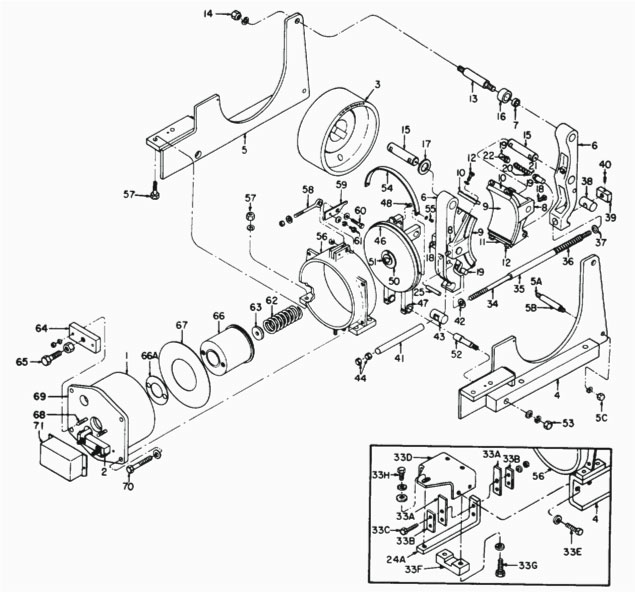

IC9528
A102 13” Brake
01.....1D178G104..........Coil
01.....1D178G114..........Coil
01.....1D178G107..........Coil
01.....1D178G1A ...........Shunt Coil
01.....1D178G100..........Coil
01.....1D178G101..........Coil
01.....1D178G105..........Coil
01.....1D178G103..........Coil
01.....1D178G106..........Coil
01.....1D178G108..........Coil
01.....1D178G109..........Coil
01.....1D178G110..........Coil
01.....1D178G111..........Coil
01.....1D178G112..........Coil
01.....1D178G113..........Coil
01.....1D178G102..........Coil
04.....171C232G21 ........Frame Front
05.....171C232G22 ........Frame Rear
05A ..282A796P2 ...........Stop Bracket for Tie Rod
05c ...N21P25016 ..........Screw
06.....171C266G21 ........Yoke With Bushings
07.....573A608P3 ...........Bushing for Yoke
08.....171C217P1 ...........Brake Shoe
09.....305A4800P3 .........Lining And Support Plate Assy.
10.....282A875P9 ...........Clamp for Lining, Upper
11.....282A875P3 ...........Clamp for Lining, Lower
12.....N93P29016 ..........Screw
13.....287A121P3 ...........Bearing Pin For RH Yoke
14.....N200P35 ..............Nut For Bearing Pin
15.....287A122P3 ...........Bearing Pin For LH Yoke
16.....282A763P2 ...........Seal
17.....282A770P8 ...........Thrust Washer
18.....577A124P2 ...........Set Screw for Armature
19.....282A862P3 ...........Friction Plug for Brake Shoe
20.....2418884P1 ...........Spring For Friction Plug
21.....282A869P1 ...........Guide Pin for Spring
22.....N908P227B ..........Retain Ring for Friction Plug
24A ..138A1173P3 .........Pivot Arm for Yoke
25.....287A120P3 ...........Pivot Pin For Yoke
33A ..138A1174P3 .........Spring Strip for Pivot Arm
33B ..138A1178P3 .........Backing Strip
33C ..N22P23024B6 ......Screw Fastening Spring Strip
33D .104B9965P3 .........Support for Pivot Arm
33e ...N21P25016 ..........Screw
33F ..138A1175P3 .........Guide for Pivot Arm
33g ...N21P29020 ..........Adjusting Screw for Pivot Arm
33h ..N21P29020 ..........Adjusting Screw for Pivot Arm
34.....104B9964P3 .........Tie Rod
35.....577A142P19 .........Spacer for Tie Rod
36.....5144482P1 ...........Compression Spring
37.....N402AP48B6 .......Spring Seat
38.....285A839P3 ...........Rocker Pin for Tie Rod
38.....138A1176P3 .........Rocker Pin
38.....287A125P3 ...........Stainless Steel Rocker Pin
39.....233B565P3 ...........Nut for Tie Rod
40.....N72P2108B6 ........Set Screw for Tie Rod Nut
41.....577A129P9 ...........Tube
42.....N402AP48B6 .......Spring Seat
43.....138A1191P3 .........Stainless Steel Rocker Pin
44.....N227P34 ..............Tie Rod Nut
46.....229B796G3 ..........Armature with Bushings
47.....573A608P13 .........Bushing for Armature
48.....577A124P2 ...........Set Screw for Armature
50.....282A892P1 ...........Spring Seat
51.....N21P29020 ..........Adjusting Screw for Pivot Arm
52.....N910P98C6..........Armature Pin E Clip
52.....323A1972P3 .........Bearing Pin
53.....N200P35 ..............Nut For Bearing Pin
54.....282A775P3 ...........Dust Cap
55.....N57P21008B ........Screw
56.....111C9015P1 .........Magnet Frame
57.....577A190P3 ...........Screw
58.....282A867P2 ...........Manual-Release Rod
59.....282A885P1 ...........Armature Gap Indicator
60.....N22P29040B6 ......Hinge Screw
61.....N530P1008B6 ......Drive Screw
62.....5144470P1 ...........Torque Spring
63.....282A886P3 ...........Spring Seat for Torque Spring
64.....282A752P1 ...........Retainer for Torque Spring
65.....282A768P3 ...........Adj. Screw for Torque Spring
66.....194A7625P1 .........Magnet Core
66A ..282A852P1 ...........Shim between Magnet Core
67.....282A859P3 ...........Retainer for Magnet Coil
68.....282A861P3 ...........Stud for Magnet Core
69.....229B759P1 ...........Back Plate
70.....N24P33064 ..........Screw
71.....218A6420G2 ........Conduit Cover |
|
 |
