503 Type M - 8", 10", 14", 18", 21", 24", 30"
505 D-C - 8", 10", 13", 16", 19", 23", 30"

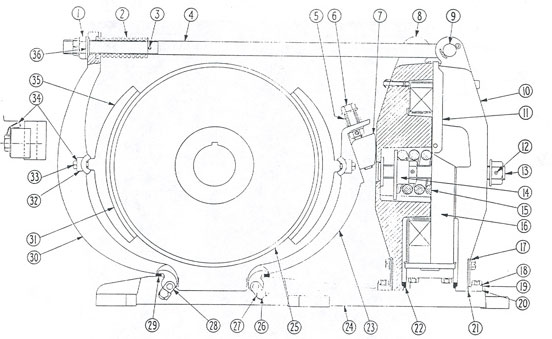

No. 505 19" D-C Magnetic Brake
No. 505 19" D-C Magnetic Brake

Item
OEM Part
Description

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
26
27
28
29
30
31
32
33
34
35
36

15-682
69-2226
13-3186-13
61-994-4
69-1470
54-4020-4
54-2764
48-612-4
13-1181-11
48-612-5
73-1017-5
13-3186-12
11-1746-5
49-2172-2
69-1664
Coil
19-982-24
19-982-23
99-2059-2
19-972-4
19-972-16
19-1688-3
19-972-5
32-50-12
24-3262-5
17-8050-2
11-2051
79-4180-27
55-1551
32-467-5
24-3263-4
24-338-21
55-1079
11-1787
69-1976
48-611
16-1598-4

Nut (Huglock)
Compression Spring
Spring Pin
Pull Rod
Spring
Wedge Adjustment Assembly
Adjusting Wedge
Armature (Inner)
Pin
Armature (Outer)
Rubber Guard
Spring Pin
Adjusting Screw Assembly
Gland
Compression Spring

Lock Strip
Lock Strip
Retro-Fit Kit
Stop Block
Stop Plate .105 Thick
Stop Plate .102 Thick
Stop Plate .093 Thick
Felt
Shoe Lever (Inner)
Base
Screw
Locking Bracket
Retainer
Dacron Felt
Shoe Lever (Outer)
Shoe Lining
Clamp
Cap Screw
Lock Spring
Shoe, Complete
Washer





Westinghouse TM,
