503
Type M - 8", 10",
14", 18",
21", 24",
30"
505 D-C - 8", 10",
13", 16",
19", 23",
30"

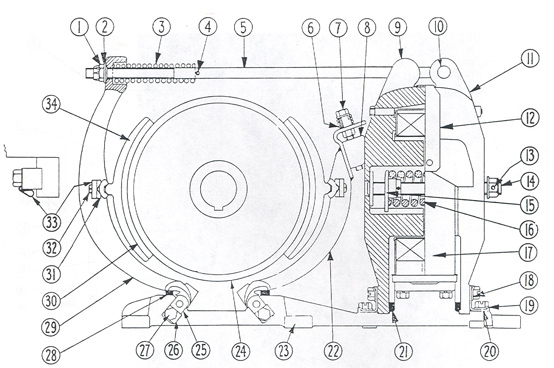

No. 505 8" D-C Magnetic Brake
Item |
OEM
Part |
Description |
| 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
25
26
28
29
30
31
32
33
34 |
15-670
16-1598
69-2024
13-3186-7
61-1013
969-482
54-4020
54-2863
48-641-5
13-506-9
48-641-6
73-1017
13-3186-5
11-1746
49-2212
69-1694
19-982-27
19-982-26
99-2058
32-50-9
24-3320-8
17-6371-2
55-1650
79-6783-5
32-467
24-3321-4
48-338-24
55-1037
11-1788
69-1975
48-1267-4 |
Nut
Spherical Washer
Spring
Spring Pin
Pull Rod
Spring
Wedge Adjustment Assembly
Adjusting Wedge
Armature (Inner)
Pin
Armature (Outer)
Rubber Guard
Spring Pin
Adjusting Screw Assembly
Gland
Compression Spring
Lock Strip
Lock Strip
Retro-Fit Kit
Felt
Shoe Lever (Inner)
Base
Retainer
Lock Bracket
Dacron Felt
Shoe Lever (Outer)
Shoe Lining
Clamp
Cap Screw
Lock Spring
Shoe |
|
|
 |
