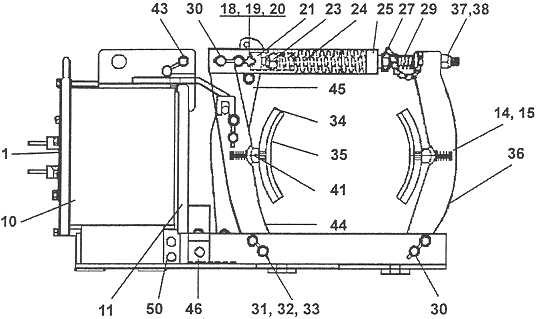

EC&M & SQUARE-D
INDUSTRIAL BRAKE REPLACEMENT
PARTS
CLASS 5010 16" TYPE F SERIES B
| ITEM |
OEM PART |
DESCRIPTION |
1
4
5
6
8
10
11
12
13
14
14
18
19
20
21
23
24
25
26
27
29
30
31
34
35
36
37
43
44
45
46
47
50
60
62
63
68
71
72
73
74
76
77
78
80
|
50906-223-01
50906-230-01
50906-166-01
29206-00665
21008-06120
50906-218-50
50906-215-50
29005-66446
50906-228-50
50901-010-07
50903-404-02
50903-407-02
29907-03210
50901-010-06
50906-117-50
50903-405-01
WB-416
50906-137-50
50906-141-01
50906-136-50
50901-010-05
50903-401-05
50903-402-02
50906-101-50
50903-808-54
50906-127-50
50903-411-52
50903401-04
50906-129-50
50906-119-50
50906-115-50
50903401-06
50906-226-01
50903-805-54
50906-158-01
29013-02120
29005-24121
50906-164-50
50906-160-01
50903-415-03
50906-165-50
50901-003-02
50906-154-50
50906-161-01
29005-32221
|
Magnet Case Cover
Terminal Shield
Lead Bushing
"O" Ring
Drive Screw
Magnet Case & Base Assembly
Armature
Bearing
Centering Bracket
Centering Bracket Spring
Lining Wear Indicator
Latch Pin
"E" Ping
Latch Pin Spring
Connecting Rod Assembly
Spring Seat
Brake Spring
Yoke
Calibration Plate
Manual Release Nut
Connecting Rod Spring
Pin
Locking Pin
Brake Shoes w/Lining
Shoe Lining Kit
Outboard Shoe Lever
Elastic Stop Nut Assembly
Pin
Inboard Shoe Lever
Connecting Rod Lever
Connecting Link
Pin
Armature Gap indicator
Self-Adj. Shoe Mechanism Kit
Connecting Rod
Connecting Rod Bearing
Bearing
Crank Assembly
Ratchet Rod
Crank Pin
Ratchet Rod End Block
Spring
Star Wheel Stop Nut Assembly
Ratchet Rod Guide
Oilite Bearing
|
|
 |
