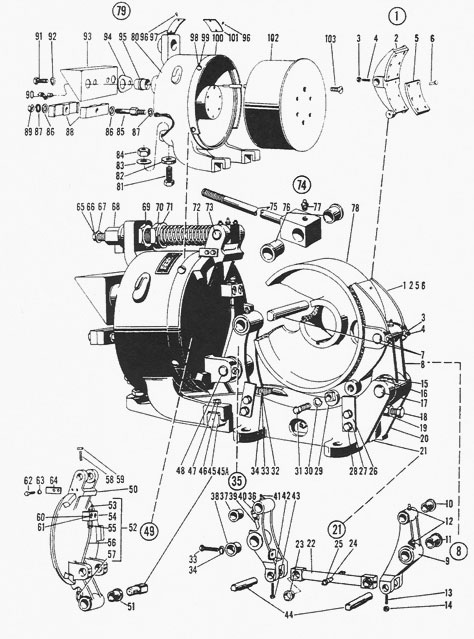

Class 5010 13" Type T WB Brake, Folio 6

Item	OEM Part	Description
1 2 3 5 6 7 8 9 10 100 11 12 15 17 18 19 20 21 21a 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 44	W-13004-A W-13005 22903-24200 W-13043 W-13046 W-13032 W-13006-A W-13008-A 29005-56404 W-13024 29005-66446 52927-017-60 22903-24200 W-13033 WB-235 W-13042 W-13018-A W-13009-A W-13151-A W-13095-A 29005-56403 25223-46400 52927-017-70 W-13025 23701-00200 21401-20240 W-13015-A 23701-00240 21401-24480 WB-2330 WB-234 23701-00280 W-13007-A W-13008-A 29005-56404 29005-66446 25223-46680 52927-017-60 52927-017-70 22903-24200 W-13098 W-13031	Assembled Brake Shoe, Complete Shoe Set Screw Brake Block Rivet Shoe Pin Assembled Shoe Lever Shoe Lever with Bearing Bearing Dust Shield Bearing Grease Fitting Set Screw Shoe Lever Pin (Frame End) Equalizing Screw Lock Nut Assembled Frame, Complete Assembled Connecting Rod, Comp Connecting Rod w/ Bearing Connecting Rod with Bearings Bearing Pipe Nipple Grease Fitting Cam Rail Pl. Lock Washer H.I. Cap Screw Cam Pl. Lock Washer H.I. Cap Screw Centering Spring Magnet Adjusting Screw Lock Washer Assembled Shoe Lever, Complete Shoe Lever with Bearing Bearing Bearing Pipe Nipple Grease Fitting Grease Fitting Set Screw Connecting Rod Pin Connecting Rod Pin
45	For improved construction use 45b & 45c
45a 45b 45c 46 47 48 49 50 51 52 53 54 55 56 57 58 60 61 62 63 64 65 66 66 67 68 69 70 71 72 72a 72b 72c 73 74 75 76 77 79 80 81 81a 82 83 84 85 86 87 88 89 91 92 93 94 * * * * * * * * *	W-13028 W-13159 W-13160 23701-00320 21401-32640 W-13034 W-13002-A W-13003-A 29005-66446 W-13047-A 52927-017-50 W-13026 52927-018-50 W-13048 52927-018-70 22903-24200 21101-20400 23701-00200 21401-20200 23701-00200 W-13049 21401-22240 23701-00220 23701-00200 TW-76 W-13022 W-13041 W-13023 W-13045 W-13020 W-13121 W-13120 W-13163 W-13035 W-13012-A W-13094-A 29005-48320 52927-017-60 W-13001-A W-13087-A W-13040 W-16165 W-13088 W-13092 W-13080 W-13090 23601-00240 23701-00240 W-13091 23002-00240 21401-24240 23701-00240 W-13089 W-13039 50903-808-53 W-13250-A 50905-224-71 W-13268-A W-13262-A Calibration W-13263-A 29005-66440 W-13266-A	Frame Bushing Magnet Hinge Pin Pin Collar Pl. Lock Washer H.I. Cap Screw Shoe Lever Pin (Armature End) Assembled Armature, Complete Armature with Bearings Bearing Assembled Grease Unit, Comp. Grease Fitting Header Block Compression Fitting Tube Compression Fitting Set Screw Fil. I. Cap Screw Pl. Lock Washer H.I. Cap Screw Pl. Lock Washer Air Gap Indicator H.I. Cap Screw Lock Washer Pl. Lock Washer Washer Manual Release Nut Lock Nut Spring Adjusting Nut Spring Collar Operating Spring Spring, 33% of Std. Torque Spring, 66% of Std. Torque Spring, 50% of Std. Torque Spring Rod Pin Assembled Spring Rod, Comp Assembled Spring Rod, Comp Bearing Grease Fitting Assembled Magnet, Complete Magnet Case, Only Magnet Adjusting Screw Stop Bracket Magnet Adjusting Nut Washer Lock Nut Lead Clamp Stud Washer Pl. Lock Washer Lead Clamp H.I. Nut H.I. Cap Screw Pl. Lock Washer Terminal Shield Gasket Shoe Lining Kit Coil Coil Shunt Coil Coil, T-1351 13" WB Calibration Plate Coil Bearing Coil Shunt
