Square
D |
|
EC&M
Type WB, 5,
10, 20, 22,
30, 40,
50, 60 |
|
Class
5010 Type T / WB, 8",
10", 13",
16", 19",
23", 30" |
|
Class
5010 Type F Series A, 8",
10", 13",
16", 19",
23", 30" |
|
Square
D Type F Series B, 8",
10", 13",
16", 19",
23" |

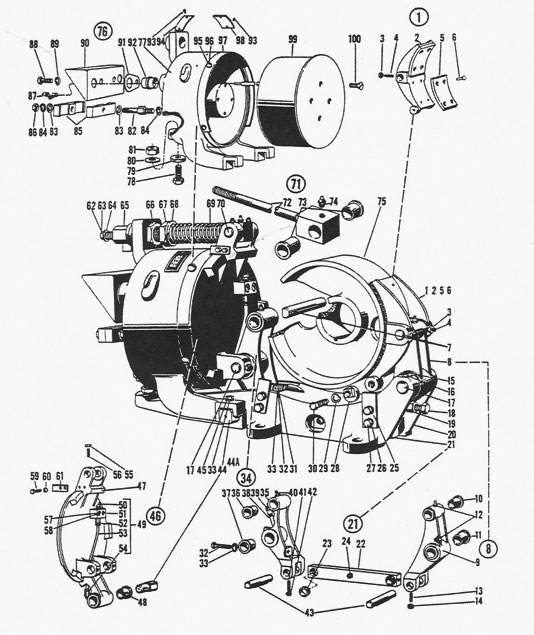

Class 5010 10" Type T WB Brake, Folio 6
Item |
OEM
Part |
Description |
| 1
2
5
6
7
8
9
10
11
12
17
18
19
20
21
22
23
24
25
27
28
31
34
35
36
37
39
40
43
44A
|
W-10004-A
W-10005
W-10043
WB-159
W-10032
W-10006-A
W-10008-A
FP-24B45
FP-24B40
52927-017-60
W-10033
WB-355
W-10042
W-10018-A
W-10009-A
W-10095-A
FP-24B47
FP-25A11
W-10025
02701-00200
W-8015-A
W-10021
W-10007-A
W-10008-A
FP-24B45
FP-24B40
52927-017-60
52927-017-70
W-10098
W-10028
|
Assembled
Brake Shoe Complete
Brake Shoe, Only
Brake Block
Lining Rivet
Shoe Pin
Assembled Shoe Lever
Shoe Lever With Bearings
Bearing
Bearing
Grease Fitting
Shoe Lever Pin
Shoe Adjusting Screw
Lock Nut
Assembled Frame, Complete
Assembled Connecting Rod
Connecting Rod
Bearing
Grease Fitting
Cam Rail
Pl. Lk. Washer
Cam (replace with W-10117)
Centering Spring
Assembled Shoe Lever
Shoe Lever With Bearings
Bearing
Bearing
Grease Fitting
Grease Fitting
10" Connecting Rod Pin
Frame Bushing
|
| 44
|
For
improved construction use 45a & 45b |
45a
45b
46
47
48
49
50
51
52
53
54
61
64
65
66
67
68
69
70
71
72
73
74
76
77
78
79
80
81
82
85
90
92
97
*
*
*
*
*
*
*
*
*
* |
W-100114
W-10115
W-10002-A
W-10003-A
FP-24B40
W-10047-A
52927-017-50
W-13026
52927-018-50
W-10048
52927-018-70
W-13049
LC-48
W-10022
W-10041
W-10023
W-10045
W-10020
W-10035
W-10012-A
W-10094-A
FP-24B47
52927-017-60
W-10001-A
W-10017
W-10040
W-10088
W-10092
W-10080
W-10090
W-10091
W-10089
W-10029
W-10024
W-10113
W-10265-A
W-10254-A
W-10118
W-10264-A
W-10039
FP-25A18
FP-25A17
FP-25A16
FP-25A15 |
Magnet
Hinge Pin
Pin Collar
Assembled Armature
Armature, Complete
Bearing
Assembled Grease Unit
Grease Fitting
Header Block
Compression Fitting
Tube
Compression Fitting
Air Gap Indicator
Washer
Manual Release Nut
Lock Nut
Spring Adjusting Nut
Spring Collar
Operating Spring
Spring Rod Pin
Assembled Spring Rod
Spring Rod
Bearing
Grease Fitting
Assembled Magnet
Magnet Case
Magnet Adjusting Screw
Magnet Adjusting Nut
Washer
Lock Nut
Lead Clamp Stud
Lead Clamp
Terminal Shield
Lead Bushing
Dust Shield
Spring, 12 1/2% of Std. Torque
Shunt Coil, 115 VDC
Coil, 16-20 HP
Spring, 50% of Std. Torque
Shunt Coil
Lead Gasket
Compression Fitting
Compression Fitting
Grease Fitting
Grease Fitting |
|
|
 |
