EC&M & SQUARE-D
INDUSTRIAL BRAKE REPLACEMENT PARTS

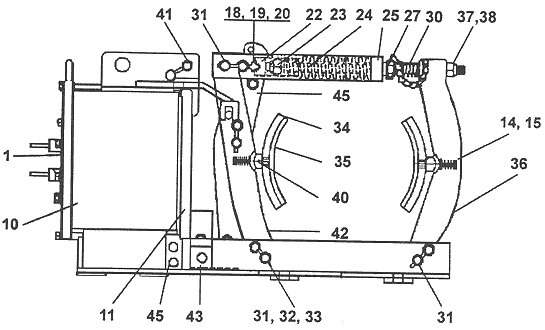

CLASS 5010 23" TYPE F SERIES B

ITEM	OEM PART	DESCRIPTION
1 4 6 8 10 11 12 13 14 18 19 20 22 23 24 25 26 27 30 31 32 34 35 36 37 38 40 41 42 43 44 45 48 52 55 56 57 58 60 61 62 64 65	50908-238-01 50908-254-01 29005-79645 21008-06120 50908-241-50 50908-237-50 29005-72600 50908-231-50 50901-010-20 50903-407-05 29907-04810 50901-010-18 50908-232-50 50903-405-04 50901-010-14 50908-227-50 50908-141-01 50908-215-50 50901-010-15 50903-401-32 50903-402-04 50908-101-50 50903-808-56 50908-246-50 50908-411-50 50908-109-01 50903-404-05 50908-243-50 50908-249-50 50908-224-50 50903-401-23 50908-139-01 50903-814-57 50908-259-01 50903-415-06 50908-263-50 50908-261-01 29013-02160 50901-003-02 50908-154-50 50908-161-01 50907-156-01 50907-165-50	Magnet Case Cover Terminal Shield Bearing Drive Screw Base and Magnet Case Assembly Armature Assembly Bearing Centering Bracket Assembly Centering Spring Latch Pin "E" Ring Latch Pin Spring Connecting Rod Assembly Spring Seat Operating Spring Yoke Assembly Calibration Plate Manual Release Nut Assembly Connecting Rod Spring Pin Locking Pin Shoe Assembly Shoe Lining Kit Outboard Shoe Lever Assembly Nut & Washer Assembly Adjusting Nut Lining Wear Indicator Inboard Shoe Lever Assembly Connecting Rod Lever Connecting Link Assembly Pin Armature Gap Indicator Self-Adj. Shoe Mechanism Kit Connecting Rod Crank Pin Crank Assembly Ratchet Rod Connecting Rod End Bearing Spring Star Wheel Stop Nut Assy Ratchet Rod Guide Spacer Ratchet Rod End w/Bearings
